DS-15 Bolt Action Upper Kit
Description
DS-15 Thunderbolt 16" Bolt Action Upper Kit
The DS-15 Thunderbolt 16" Bolt Action Upper Kit is a purpose-built bolt action AR upper designed to configure a compatible AR-15 lower as a manually operated bolt-action platform. The Thunderbolt system eliminates the conventional gas-operated cycling system and is available in three configurations depending on how much of the upper assembly you want DSI to supply.

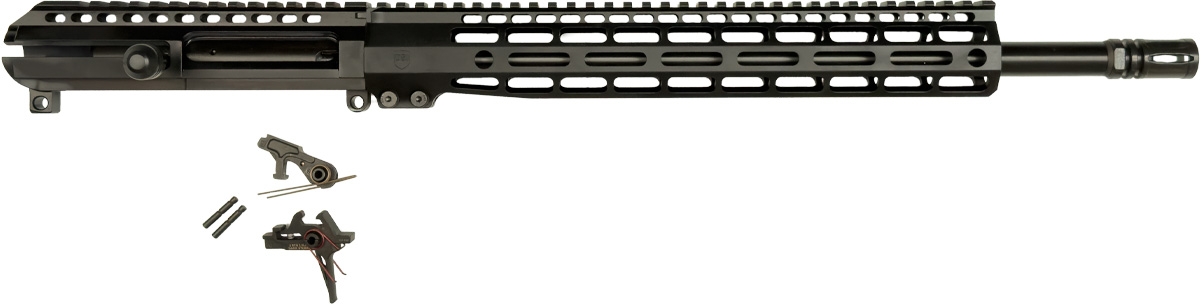

The Full Kit includes the billet Thunderbolt upper receiver, 16-inch 5.56 NATO bolt-action barrel, 13-inch Typhoon M-LOK handguard, Thunderbolt bolt carrier group, premium two-stage flat trigger, and bolt catch delete. A second configuration omits the handguard, allowing the builder to select their own compatible rail system.
A third configuration is available without a barrel or handguard for builders who want to use their own components. This version includes a non-ported .750 gas block designed to cover and block the gas port on a compatible existing barrel. The builder supplies the barrel, bolt, and handguard.
Full Kit
| Billet Bolt Action Upper Receiver |
• Machined from U.S.-produced 7075-T651 aluminum • Mil-Spec Type III Class 2 hardcoat anodized finish |
| 13" Typhoon Free-Float Handguard |
• Lightweight 6061 aluminum construction • Slim profile • Proprietary barrel nut included • M-LOK compatible mounting system • 13-inch length • Type III hardcoat anodized finish |
| Premium Trigger |
• Investment-cast, no MIM parts • Two-stage short-pull flat trigger • 3.5 lb pull weight • Integrated safety system helps prevent firing out of battery |
| Thunderbolt System |
• 8620 bolt carrier • 9310 bolt with enhanced profile for extended service life • Nitride heat treatment and finish • Bolt catch delete • Bolt catch delete is designed specifically around the DSI billet lower receiver; minor gunsmithing may be required when used with another lower |
| DSI 16" Bolt Action Barrel |
• 5.56 NATO • 4150 CMV steel certified to MIL-B-11595E • Button-rifled 1:7 twist • Lightweight straight profile • No gas port or gas system • Black nitride heat-treatment finish |
No Handguard Kit
| Billet Bolt Action Upper Receiver |
• Machined from U.S.-produced 7075-T651 aluminum • Mil-Spec Type III Class 2 hardcoat anodized finish |
| Premium Trigger |
• Investment-cast, no MIM parts • Two-stage short-pull flat trigger • 3.5 lb pull weight • Integrated safety system helps prevent firing out of battery |
| Thunderbolt System |
• 8620 bolt carrier • 9310 bolt with enhanced profile for extended service life • Nitride heat treatment and finish • Bolt catch delete • Bolt catch delete is designed specifically around the DSI billet lower receiver; minor gunsmithing may be required when used with another lower |
| DSI 16" Bolt Action Barrel |
• 5.56 NATO • 4150 CMV steel certified to MIL-B-11595E • Button-rifled 1:7 twist • Lightweight straight profile • No gas port or gas system • Black nitride heat-treatment finish |
No Barrel or Handguard Kit
| Billet Bolt Action Upper Receiver |
• Machined from U.S.-produced 7075-T651 aluminum • Mil-Spec Type III Class 2 hardcoat anodized finish |
| Premium Trigger |
• Investment-cast, no MIM parts • Two-stage short-pull flat trigger • 3.5 lb pull weight • Integrated safety system helps prevent firing out of battery |
| Thunderbolt Bolt Carrier |
• 8620 bolt carrier • User supplies compatible bolt • Nitride heat treatment and finish • Bolt catch delete • Bolt catch delete is designed specifically around the DSI billet lower receiver; minor gunsmithing may be required when used with another lower |
| .750 Gas Blocker |
• Steel construction • Designed to cover and block an existing barrel gas port • Fits .750-inch gas journals • Secured with two bottom-mounted Allen-head set screws |
Specifications subject to change without notice.
